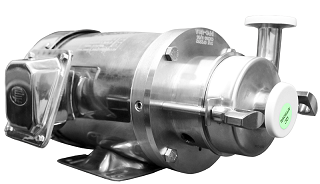

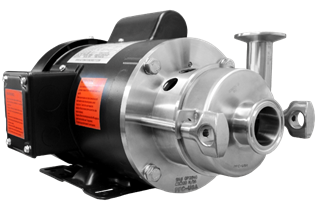

C-100 centrifugal pump (temp)

  • $920.00


Stock Status

3/4 HP 1 HP

Same day shipping for orders placed before 2:00 pm (central time)

Only applies for pumps In-Stock

Other pumps Usually ships in 3-5 days

Shipping Limitation: Pumps do not qualify for free shipping.

C-Series Adjustable Pump Legs (Pair)

$0.00

Includes: 2 legs

This information is provided for reference purposes only. To find out which pump is best for your application, please fill out our pump application data sheet

motor enclosure

TEFC “Totally Enclosed, Fan Cooled":

Totally enclosed motors are suitable for use in humid environments. The motor is dust tight and has a moderate water seal as well.

Washdown:

Designed to withstand high pressure wash-downs or other high humidity or wet environments. This does not allow for the motor to be submerged.

Specifications:

Pump wetted materials: 316L Stainless Steel
Connections: 1 1/2" X 1" Tri-Clamp
Impeller size: 3 11/16"
Mechanical seal: Carbon (Standard)
Seal type: D seal (Standard), DG seal not available
Elastomers: Buna (Standard), FKM and EPDM (Optional)

DO YOU HAVE THE MOTOR?

Please contact us for price

C-100 Head pump (Without motor)
Ready to install in a Nema C-face motor
WHAT NEMA FRAME DO YOU NEED?
For more Info. please call 281-288-0286

Motors: 0.75 - 1 HP

Single phase motor(TEFC)3-Phase motor (Washdown)
* 1-Phase, 60Hz
* 3600 RPM
* 115/208-230 Volt
* TEFC Enclosure
* 1.15 Service Factor
* Class F Insulation
* C-face - Rigid Base
* Rolled Steel
* NEMA 56C
* Capacitor start
* 3-Phase, 60Hz
* 3600 RPM
* 208-230/460 Volt
* TEFC Enclosure
* 1.15 Service Factor
* Class F Insulation
* C-face - Rigid Base
* Stainless Steel washdown
* NEMA 56C
* Corrosion resistant
