Sanitary POSITIVE DISPLACEMENT PUMP
Is a positive displacement pump the right option for you?
Do you want transfer high viscosity fluids?
Do you want Pumping fluids containing substantial solids, slurries, and pastes?
Does your application require a self-priming suction lift?
Do you need a measured flow or constant pressure at different flow rates?
Positive displacement pumps are used to transfer high viscosity fluids at high pressures and relatively low flows.
Usually selected for their ability to handle fluids with particles and soft solids.
VISCOSITY RANGE up to 1,000,000 CP

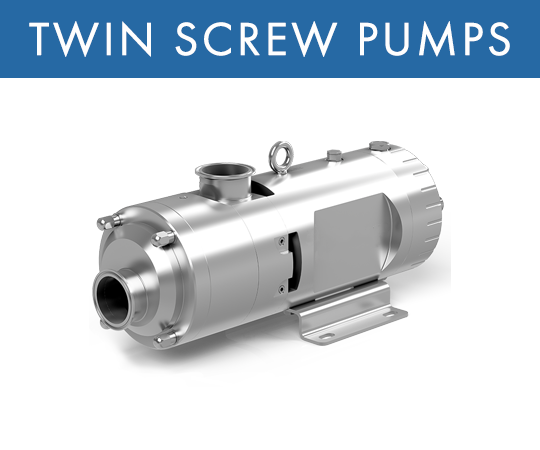

Is the latest generation "2-in-1" pump, delivering the benefits of both positive displacement pumps and centrifugal pumps.
Save time and cost because pumping and cleaning are processed within a single pump.
Handle low and highly viscous fluids, pastes and fruit particles within a juice.

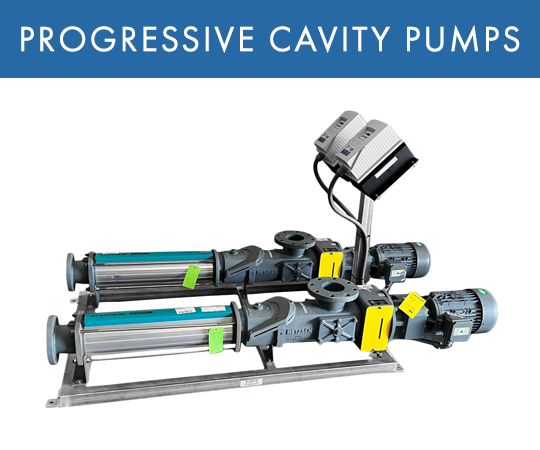

Progressive cavity pumps are used to transfer products of low and high viscosity as well as products containing soft particles.

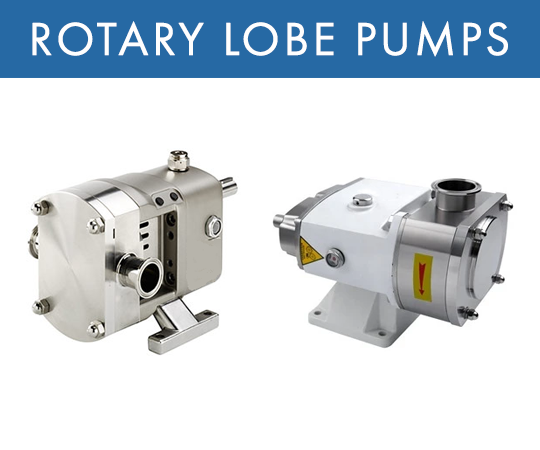

Rotary lobes have the ability to handle highly viscous fluids, pastes and handle fluids containing soft solids without causing any damage.
Flexible Impeller Pumps
Sanitary Peristaltic Pumps
Circumferential Piston Pumps
Sanitary Diaphragm Pumps

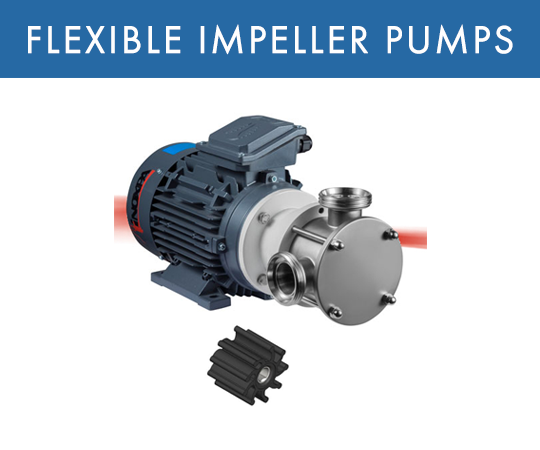

Flexible impellers handle low and high viscosity fluids, gels and pastes and carefully can handle fluids containing hard and soft solids.

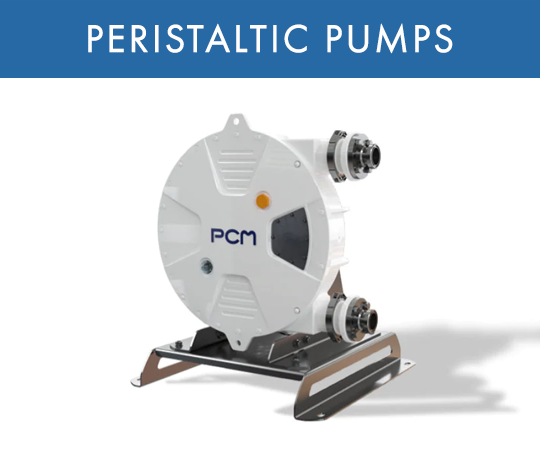

The peristaltic pumps are ideal for transferring abrasive products such as spent grains, crushed meat juices containing bone debris… They also ensure the safe transfer of fragile products (fruit pieces or slaughterhouse residues in the recovery of by-products).

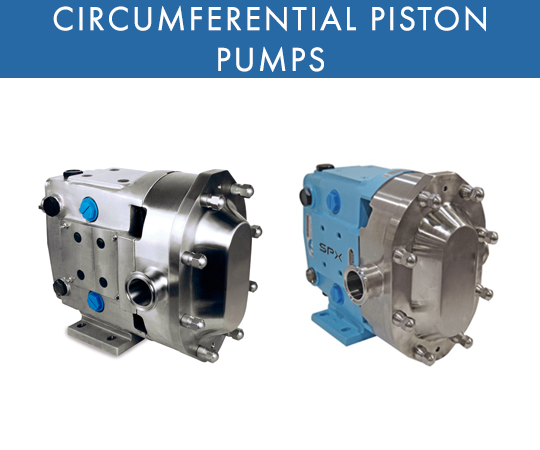

This pump will handle high viscosity products and settled slurries that jam up lobe pumps or progressing cavity pumps with ease. It also imparts very low shear forces to the pumped product, far lower shear than lobe pumps or progressive cavity pumps.

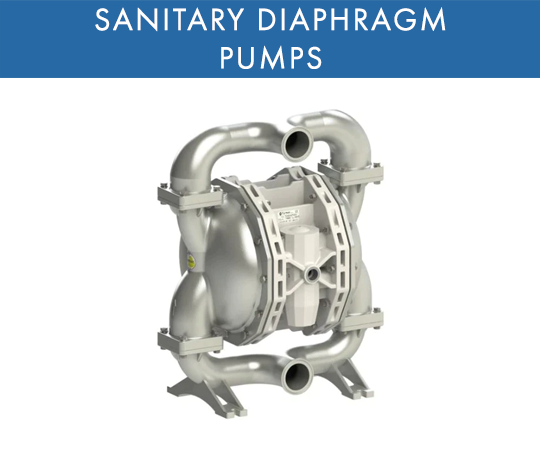

Sanitary Diaphragm Pumps are used to push liquids like Oils, Soft Soda Drinks, Syrup, Liquids with solids, viscous products, shear-sensitive foodstuffs, pharma product, creams slurrys and more.
application examples
COMPARATIVE CHART
| Type | Max. viscosity (CP) | Max. size soft solids (Inches) | Gentle with soft solids products | Max. flow (GPM) | Max. pressure. (PSI) | Suction lift (feet) | cost | Bidirectional |
|---|---|---|---|---|---|---|---|---|
| Centrifugal Pump | 900 | Nr | nr | 650 | 87 | 0 | $ | No |
| Lobe pump | 200,000 | 0.60 | +/- | 650 | 174 | 10 | $$$ | yes |
| Circumferential piston | 1,000,000 | 1.0 | +/- | 152 | 300 | 13 | $$$$ | yes |
| flexible impeller | 20,000 | 0.70 | ++ | 109 | 87 | 16 | $ | yes |
| progressive cavity | 1,000,000 | 1.25 | ++ | 198 | 174 | 22 | $$ | yes |
| twin screw | 1,000,000 | 1.62 | ++ | 400 | 174 | 20 | $$$$$ | yes |
| Peristaltic | 50,000 | 1.8-2 | ++ | 50 | 100 | 20 | $$ | yes |
| Sanitary Diaphragm | 50,000 | 5/16" Maximum | ++ | 185 | 116 | 19 | $$ | No |
++ Good + fair - poor nr = not recommended
| products | Viscosity (centipoise) | °F |
|---|---|---|
| Peanut butter | 250,000 | 70 |
| sour cream | 100,000 | 70 |
| mustard | 70,000 | 70 |
| ketchup | 50,000 | 70 |
| processed cheese | 30,000 | 65 |
| cookie cream | 29,000 | 65 |
| MAYONNAISE | 20,000 | 70 |
| chocolate | 17,000 | 120 |
| corn syrup | 12,000 | 130 |
| milk | 3 | 70 |
| syrup | 1 | 70 |
